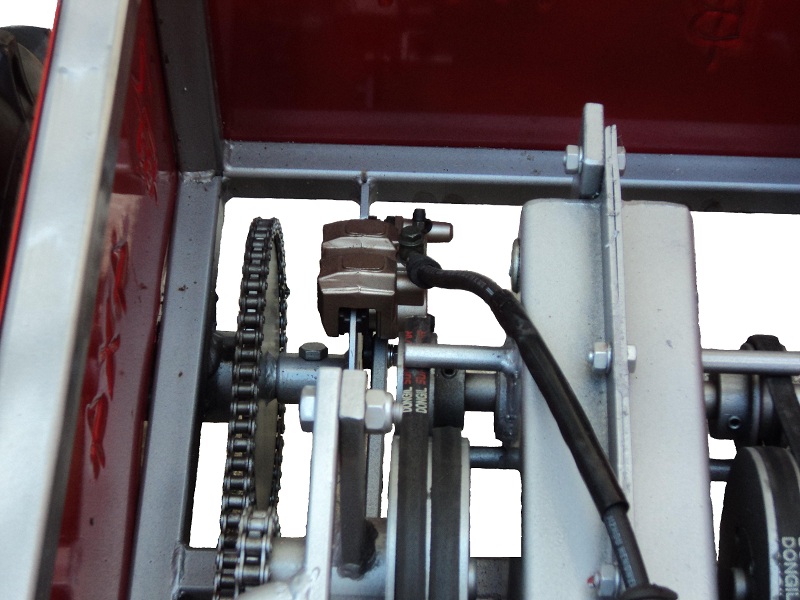

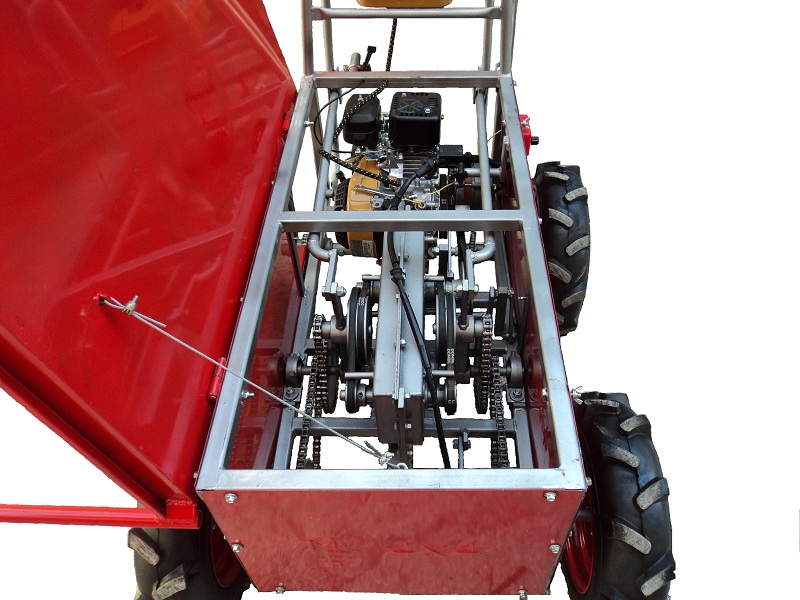

Robust construction made of cavity. The main traffic is through a gearbox. The gearbox includes a double chain where it works in oil.
All the materials used are among the most reliable on the market, thus achieving the best possible operation of the machine. All parts of the machine are accessible for easy maintenance. Move the two levers forward to move forward and pull backwards to reverse. To turn right, pull the right lever back and push the left one in front. Conversely to turn left. To stop the machine, pull the handwheel to the left, braking the wheels to release the engine from the machine. All the machine is protected around with sheet metal. The trolley opens sideways without the use of tools. It is equipped with a SUBARU EX17 6HP engine and a BOSCH 70A type dynamo. The electric system for olive harvester operation is a voltage regulator with 12 positions 12-29V , butterfly sockets. The wheels are 4.00 / 10 in size.
CHARACTERISTICS
- Length 130cm
- Height 114cm
- Width 92cm
- Height of carriage 70cm
- Carriage dimensions 60cm x 105cm x 5cm
2 YEAR WARRANTY
OUR CONSTRUCTION
Complete Spare Parts SERVICE
